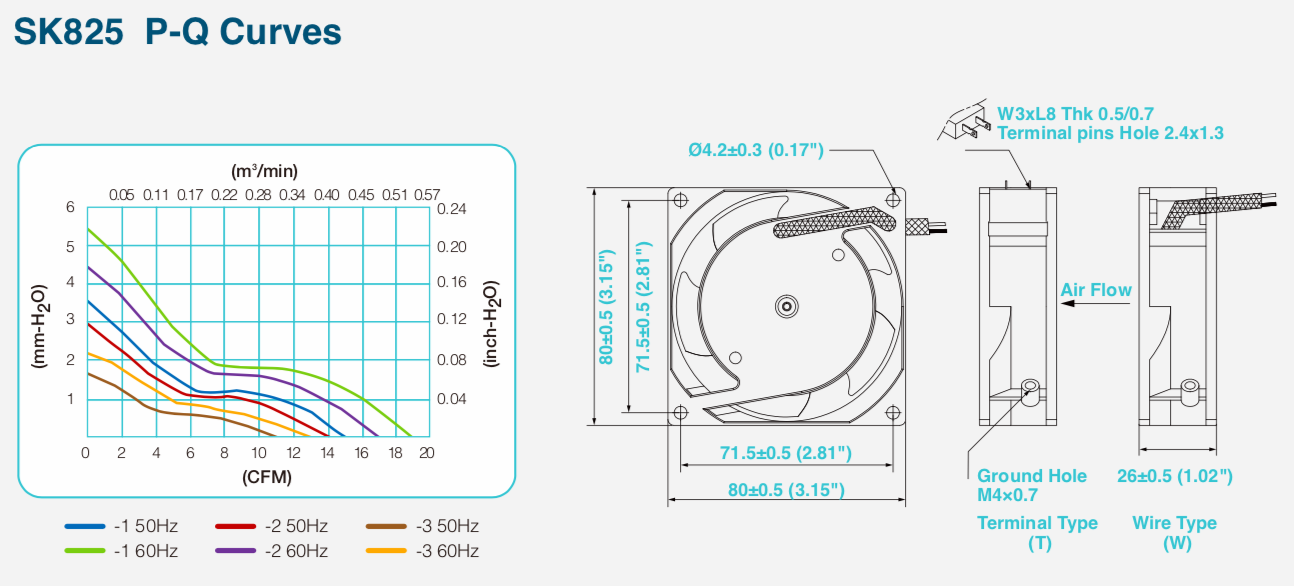

SK825

馬達: Shaded pole, impedance protected
外殼: Die-cast aluminum, Painted black (AP)
風葉: PBT thermoplastic + glass fiber, UL 94V-0
軸承: Two-ball or sleeve available
接電方式: T-Terminal push-on type or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Ball bearing -20℃~+70℃
Sleeve bearing -10℃~+55℃
壽命: Ball bearing 60,000 hours at 60℃
Sleeve bearing 20,000 hours at 45℃
淨重: 260gm(0.57 pound)
檢定: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O
SK825AP-11-1 110
(100V~120V)
50/60 0.17/0.15 15/13 2550/3200 0.42/0.54 15/19 3.5/5.5 0.14/0.22 27/34
SK825AP-11-2 110
(100V~120V)
50/60 0.09/0.08 10/9 2100/2550 0.34/0.42 12/15 2.1/2.8 0.08/0.11 27/29
SK825AP-11-3 110
(100V~120V)
50/60 0.07/0.06 7/6 1750/1850 0.28/0.34 10/12 1.5/1.6 0.06/0.06 25/30
SK825AP-22-1 220
(200V~240V)
50/60 0.08/0.07 15/13 2550/3200 0.42/0.54 15/19 3.5/5.5 0.14/0.22 27/35
SK825AP-22-2 220
(200V~240V)
50/60 0.06/0.05 10/9 2400/2950 0.40/0.51 14/18 2.9/4.3 0.11/0.17 23/24
