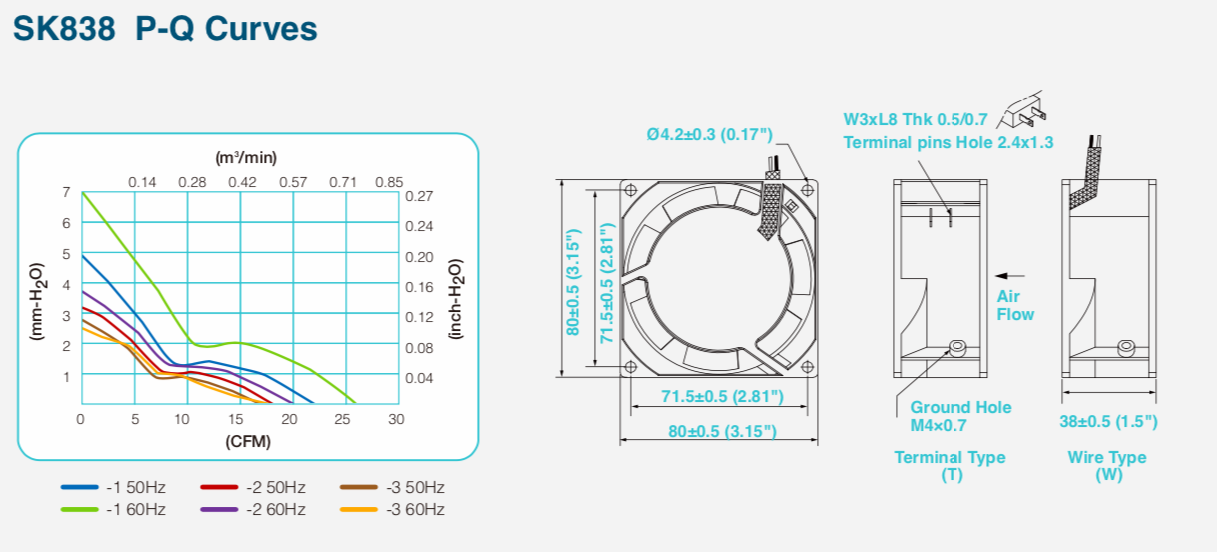

SK838

馬達: Shaded pole, impedance protected
外殼: Die-cast aluminum, Painted black (AP)
風葉: PBT thermoplastic + glass fiber, UL 94V-0
軸承: Two-ball or sleeve available
接電方式: T-Terminal push-on type or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Ball bearing -20℃~+70℃
Sleeve bearing -10℃~+55℃
壽命: Ball bearing 60,000 hours at 60℃
Sleeve bearing 20,000 hours at 45℃
淨重: 370gm(0.82 pound)
檢定: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O

SK838AP-11-1

110
(100V~120V)
50/60 0.12/0.10 14/12 2700/3250 0.62/0.74 22/26 4.8/6.8 0.19/0.27 30/35
SK838AP-11-2 110
(100V~120V)
50/60 0.07/0.06 11/9 2250/2550 0.51/0.57 18/20 3.2/3.8 0.13/0.15 26/29
SK838AP-22-1 220
(200V~240V)
50/60 0.06/0.05 14/12 2700/3250 0.62/0.74 22/26 4.8/6.8 0.19/0.27 30/37
SK838AP-22-2 220
(200V~240V)
50/60 0.05/0.04 11/9 2450/2700 0.51/0.57 18/20 3.2/3.8 0.13/0.15 26/29
SK838AP-22-3 220
(200V~240V)
50/60 0.04/0.03 7/5 2200/2200 0.48/0.51 17/18 3.0/2.5 0.12/0.10 25/26
