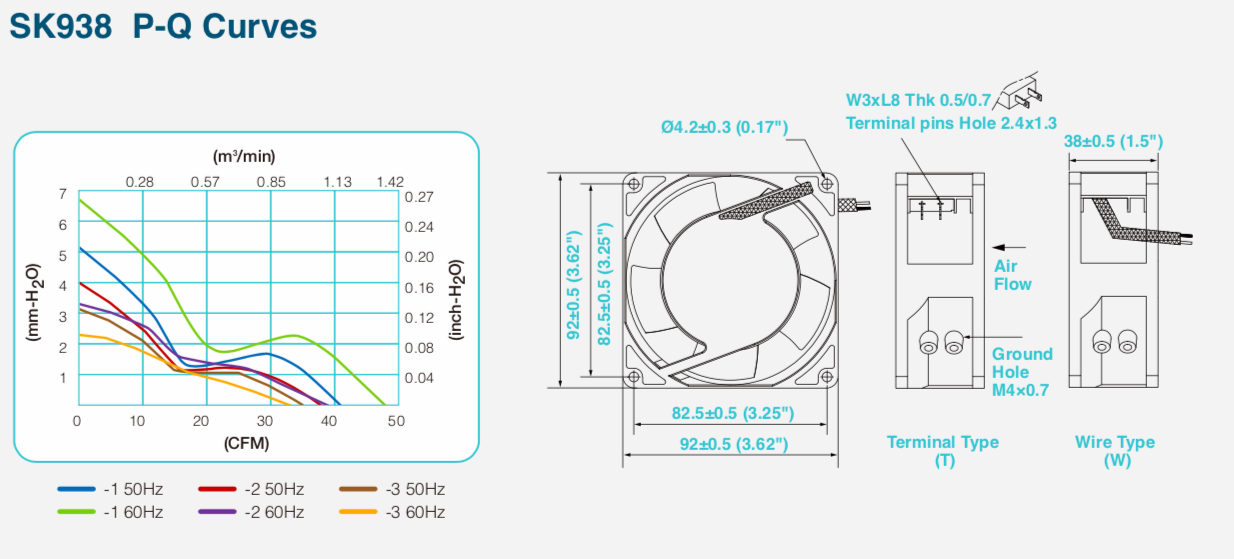

SK938

馬達: Shaded pole, impedance protected
外殼: Die-cast aluminum, Painted black (AP)
風葉: PBT thermoplastic + glass fiber, UL 94V-0
軸承: Two-ball or sleeve available
接電方式: T-Terminal push-on or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Ball bearing -20℃~+70℃
Sleeve bearing -10℃~+55℃
壽命: Ball bearing 60,000 hours at 60℃
Sleeve bearing 20,000 hours at 45℃
淨重: 450gm(0.99 pound)
檢定: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O
SK938AP-11-1 110
(100V~120V)
50/60 0.12/0.11 14/12 2700/3200 1.19/1.42 42/50 4.7/6.3 0.19/0.25 34/39
SK938AP-11-2 110
(100V~120V)
50/60 0.07/0.06 11/9 2400/2550 1.16/1.25 41/44 4.1/4.2 0.16/0.17 32/35
SK938AP-11-3 110
(100V~120V)
50/60 0.05/0.04 7/5 2200/1950 1.08/1.02 38/36 3.3/2.4 0.13/0.09 30/27
SK938AP-22-1 220
(200V~240V)
50/60 0.06/0.05 14/12 2600/3050 1.19/1.42 42/50 4.7/6.3 0.19/0.25 35/40
SK938AP-22-2 220
(200V~240V)
50/60 0.05/0.04 11/9 2400/2550 1.16/1.25 41/44 4.1/4.2 0.16/0.17 34/36
