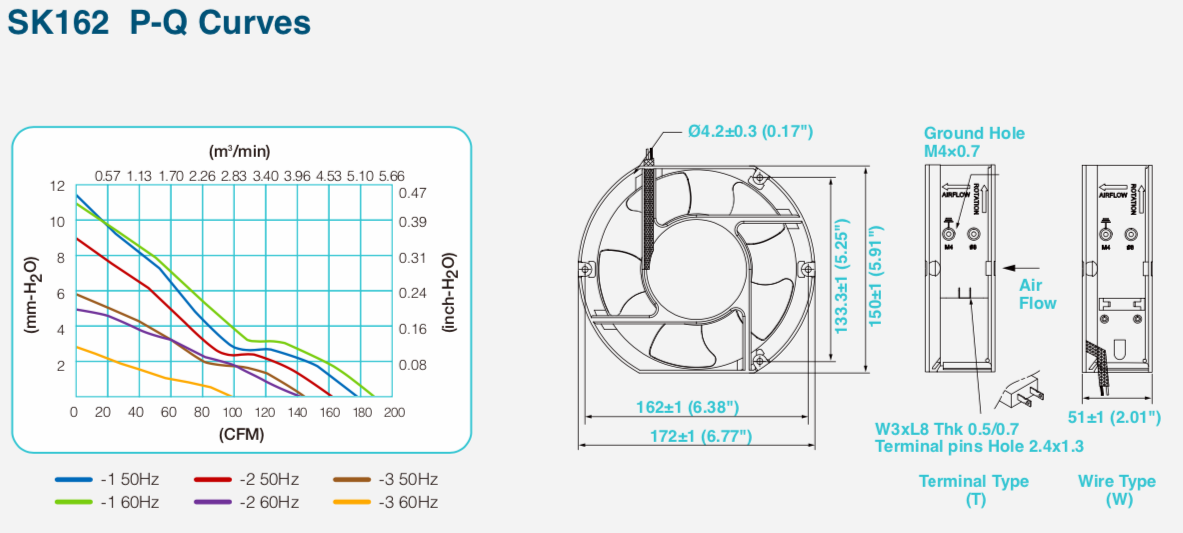

SK162 (172X150X51mm)

馬達: Shaded pole, impedance protected or thermally protected
外殼: Die-cast aluminum, Painted black (AP) or Plated (AN)
風葉: PBT thermoplastic + glass fiber, UL 94V-0
軸承: Two-ball bearing
接電方式: T-Terminal push-on type or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Ambient  -20℃~+55℃
壽命: 60,000 hours at 40℃
淨重: 1,050gm(2.31 pounds)
認證: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O
SK162AP-11-1 110
(100V~120V)
50/60 0.56/0.50 38/36

2600/2850

5.0/5.4

178/190

11.4/11.0

0.45/0.43

50/53

SK162AP-11-2 110
(100V~120V)
50/60 0.28/0.27 25/23

2400/2000

4.6/4.0

162/143

9.0/5.0

0.35/0.20

40/42

SK162AP-11-3 110
(100V~120V)
50/60 0.21/0.19 22/20

2170/1300

4.1/2.8

145/100

5.8/2.8

0.23/0.11

32/34

SK162AP-22-1 220
(200V~230V)
50/60 0.30/0.25 38/36

2600/2850

5.0/5.4

178/190

11.4/11.0

0.45/0.43

50/53

SK162AP-22-2 220
(200V~230V)
50/60 0.17/0.16 25/23

2400/2200

4.6/4.0

162/143

9.0/5.0

0.35/0.20

40/42

SK162AP-22-3 220
(200V~230V)
50/60 0.13/0.12 22/20

2170/1300

4.1/2.8

145/100

5.8/2.8

0.23/0.11

32/34
