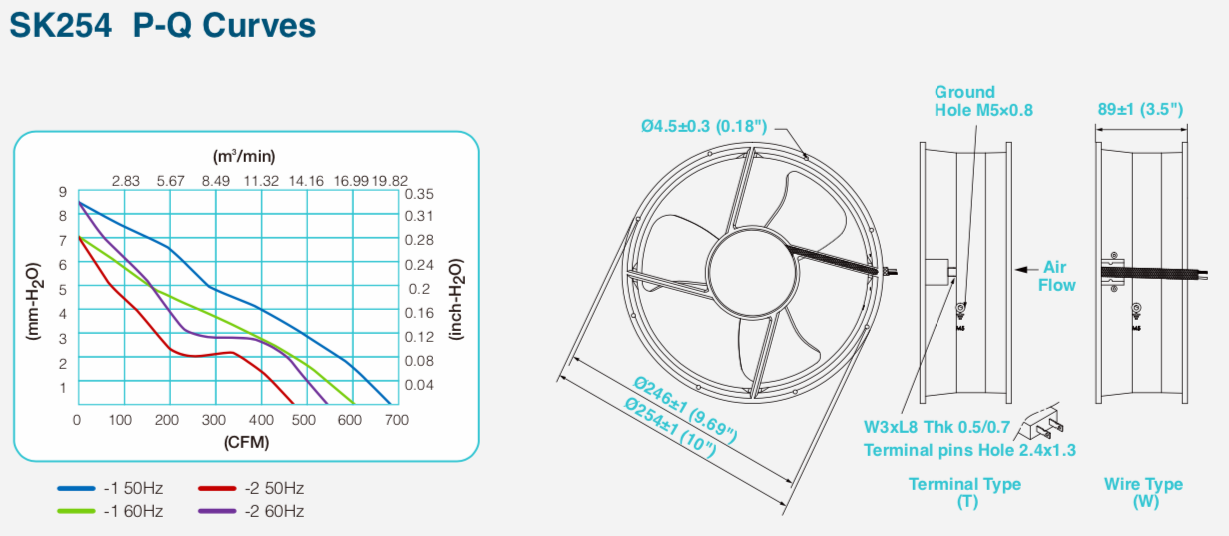

SK254

254X89mm

馬達: Single phase induction capacitor motor, thermally protected
外殼: Die-cast aluminum, Painted black (AP) or Plated (AN)
風葉: PC thermoplastic + glass fiber, UL 94V-0
軸承: Two-ball
接電方式: T-Terminal push-on type or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Recommended ambient range –20℃~+70℃
壽命: 60,000 hours at 25℃
40,000 hours at 65℃
淨重: 2 kg (4.4 pounds)
檢定: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O
SK254AP-11-1 110
(100V~120V)
50/60

0.55/0.62

60/67 2100/1800 20.7/18.1 730/640 9.4/7.2 0.37/0.28 61/57
SK254AP-11-2 110
(100V~120V)
50/60

0.22/0.24

34/37 1400/1600 13.0/15.3 460/540 6.6/7.9 0.27/0.31 52/59
SK254AP-22-1 220
(200V~240V)
50/60

0.26/0.30

60/67 2100/1800 20.7/18.1 730/640 9.4/7.2 0.37/0.28 61/58
SK254AP-22-2 220
(200V~240V)
50/60

0.16/0.14

34/37 1400/1600 13.0/15.3 460/540 6.6/7.9 0.27/0.31 49/53
