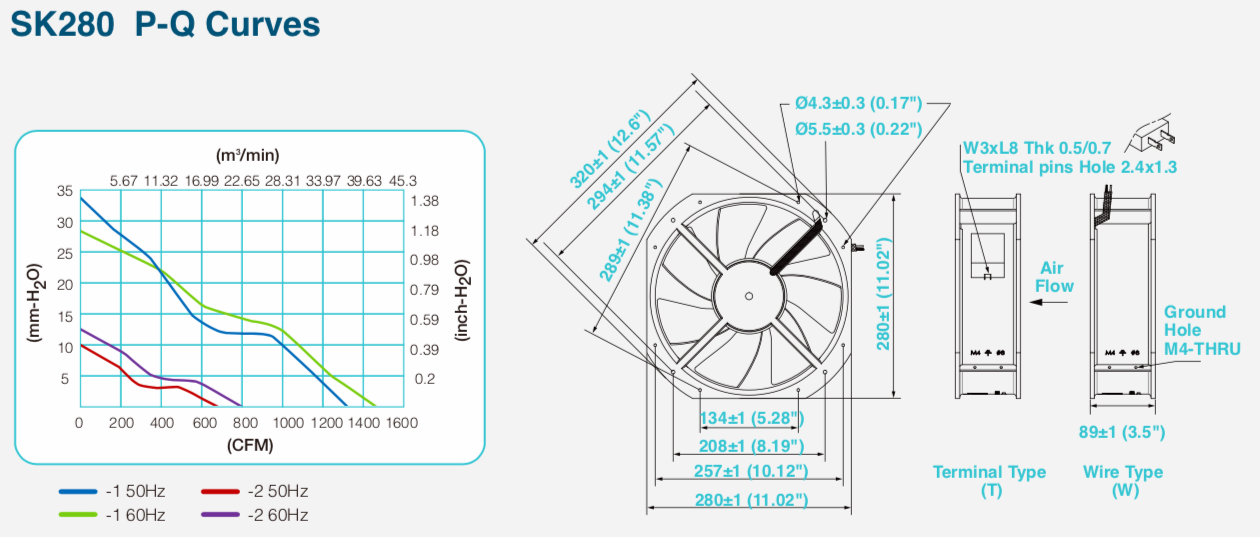

SK280 (280X280X89mm)
280x280x89mm
| 馬達： | Single phase induction capacitor motor, thermally protected |
| 外殼： | Die-cast aluminum, Painted black (AP) or Plated (AN) |
| 風葉： | PPS thermoplastic + glass fiber, UL 94V-0 |
| 軸承： | Two-ball bearing |
| 接電方式： | T-Terminal push-on type or W-Lead wire type |
| 耐壓： | 1 min. at 1,500VAC, 50/60Hz |
| 溫度範圍： | Recommended ambient range –20℃~+70℃ |
| 壽命： |
60,000 hours at 40℃ |
| 淨重： | 4.24 kg (9.34 pounds) |
| 認證： | UL, CUL, TUV, CE, RoSH |
| 型號 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 最大風量 | 最大風壓 | 噪音 | ||
| m3/min | CFM | mm-H2O | inch-H2O | |||||||
| SK280AP-11-1 |
110 (100~120) |
50/60 | 1.07/2.84 | 185/300 | 2800/3200 | 37.5/41.5 | 1325/1465 | 33.7/28.5 | 1.33/1.12 | 73/75 |
| SK280AP-11-2 |
110 (100~120) |
50/60 | 0.82/0.67 | 61/60 | 1500/1700 | 19.3/22.6 | 680/800 | 9.8/12.6 | 0.39/0.50 | 56/59 |
| SK280AP-22-1 |
220 (200~240) |
50/60 | 0.80/1.29 | 185/290 | 2800/3200 | 37.5/41.5 | 1325/1465 | 33.7/28.5 | 1.33/1.12 | 73/75 |
| SK280AP-22-2 |
220 (200~240) |
50/60 | 0.42/0.35 | 62/65 | 1500/1700 | 19.3/22.6 | 680/800 | 9.8/12.6 | 0.39/0.50 | 56/59 |
