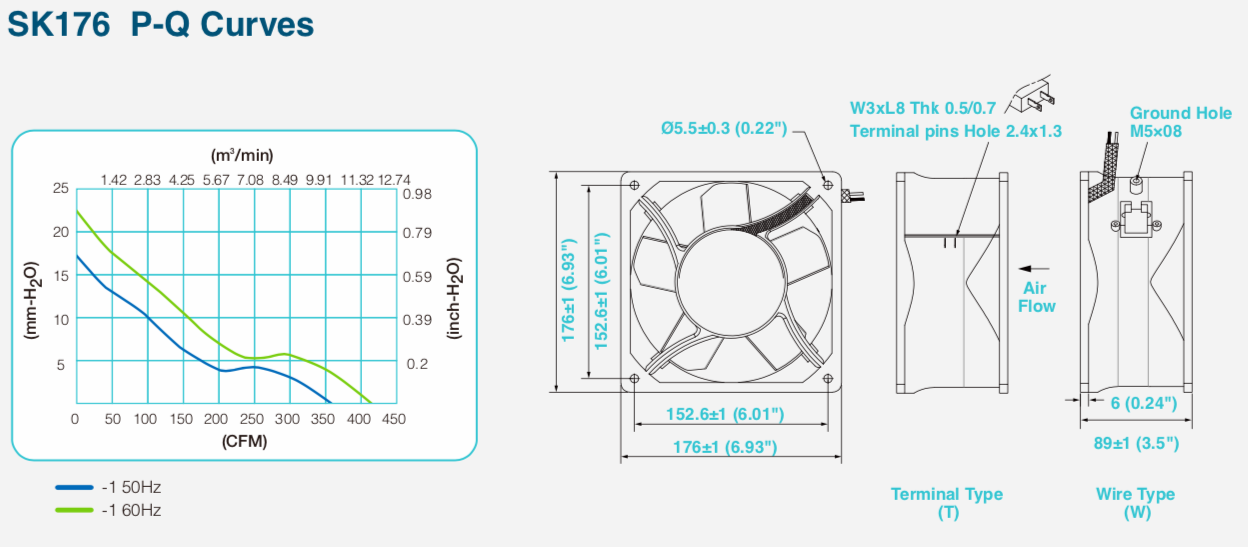

SK176

176x176x89mm

馬達: Single phase induction capacitor motor, thermally protected
外殼: Die-cast aluminum, Painted black (AP) or Plated (AN)
風葉: PC thermoplastic + glass fiber, UL 94V-0
軸承: Two-ball bearing
接電方式: T-Terminal push-on type or W-Lead wire type
耐壓: 1 min. at 1,500VAC, 50/60Hz
溫度範圍: Recommended ambient range -20℃~+70℃
壽命: 60,000 hours at 25℃
40,000 hours at 65℃
淨重: 2 kg (4.4 pounds)
檢定: UL, CUL, TUV, CE, RoHS
型號 電壓 頻率 電流 功率 轉速 最大風量 最大風壓 噪音
m3/min CFM mm-H2O inch-H2O
SK176AP-11-1 110
(100V~120V)
50/60

0.57/0.48

50/52

2800/3250

10.5/11.9

370/420

16.9/22.4

0.67/0.88

61/64

SK176AP-22-1 220
(200V~240V)
50/60

0.21/0.23

43/52

2800/3250

10.5/11.9

370/420

16.9/22.4

0.67/0.88

61/64
